Features:
1.Adapts to qualified IGBT discrete and advanced inverter technology to achieve highly 30-40KHz frequency
2.Higher output no-load voltage, easy to arc-starting and excellent welding performance
3.Applies to various welding rods including acid and basic one
4.Smaller, lighter and portable
5.Integrates highly-reliable control circuit and multilevel current control mode
6.High efficiency to save more 30% energy than traditional welders

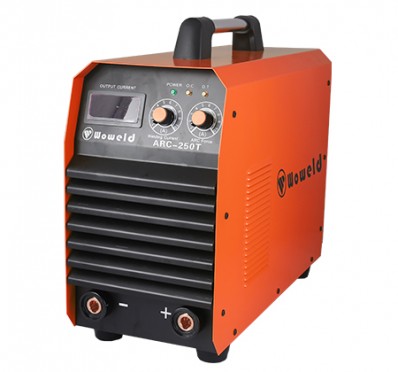

Technical Data | ARC-250T |
Rated Input Voltage | 380/415±15% |
Phase/Frequency | 3Ph/50~60Hz |
Rated Input Power | 9.5KVA |
Rated Duty Cycle | 60% |
Output Amperage Range | 40~250A |
Output Voltage Range | 21.6~30V |
Output No-load Voltage | 61V |
Efficiency | 85% |
Power Factor | 0.93 |
Protection Grade | IP 23 |
Insulation Class | F |
Net Weight | 17KG |
Dimensions | 48*20*36CM |
