Features:
1.Adapts to qualified IGBT discrete and advanced inverter technology to achieve highly 18 KHz frequency
2.Stable welding arc ensures minimal spatter,deep welding penetration and a great welding seam
3.Able to cut ball after welding; high successful rate of arc-starting
4.A new air exhausting duct design to increase the effective of heatsink, makes it more reliable
5.widely used in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture etc

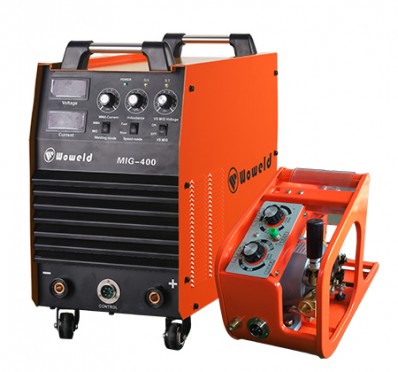

| Technical Data | MIG-400 | ||
| Function | MIG | MMA | |
| Rated Input Voltage | 380~415±15% | ||
| Phase/Frequency | 3Ph/50~60Hz | ||
| Rated Input Power | 17.2KVA | 10KVA | |
| Rated Duty Cycle | 60% | ||
| Output Amperage Range | 80~400A | 20~280A | |
| Output Voltage Range | 18~34V | 20~31V | |
| Arc Ending Current Range | 80~400A | N/A | |
| Arc Ending Voltage Range | 18~34V | N/A | |
| Wire Diameter | Core Wire | 0.8/1.0/1.2 | |
| Flux Wire | 1.0/1.2 | ||
| Efficiency | 85% | ||
| Power Factor | 0.93 | ||
| Protection Grade | IP 23 | ||
| Insulation Class | F | ||
| Net Weight | 40KG | ||
| Dimensions | 60*30*52CM | ||
