Features:
1.Worldwide advanced IGBT technology, small volume,light weight and high effective
2.Easy arc-starting, minimal spatter, stable current and good shaping
3.Stable and reliable multi-function MMA inverter
4.PWM and PLC control technology
5.Suitable for all kinds of electrodes such as acid electrodes, basic electrodes,heat-resistant steel electrodes,stainless steel electrodes etc.

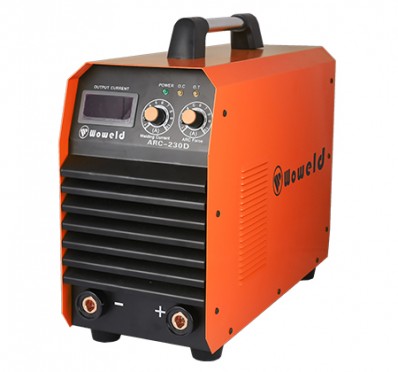

| Technical Data | ARC-230D | |
| Rated Input Voltage | 220~240V±15% | 380~415V±15% |
| Phase/Frequency | 1Ph/50~60Hz | 3Ph/50~60Hz |
| Rated Input Power | 10.4KVA | |
| Rated Duty Cycle | 60% | |
| Output Amperage Range | 20~230A | |
| Output Voltage Range | 20.8~29.2V | |
| Output No-load Voltage | ||
| Efficiency | 85% | |
| Power Factor | 0.76 | |
| Protection Grade | IP 23 | |
| Insulation Class | F | |
| Net Weight | 15KG | |
| Dimensions | 48*20*36CM | |
