Features:
1.Adapts to qualified IGBT discrete and advanced inverter technology to achieve highly 30-40KHz frequency
2.Higher output no-load voltage, easy to arc-starting and excellent welding performance
3.Applies to various welding rods including acid and basic one
4.Smaller, lighter and portable
5. Integrates highly-reliable control circuit and multilevel current control mode
6. High efficiency to save more 30% energy than traditional welders

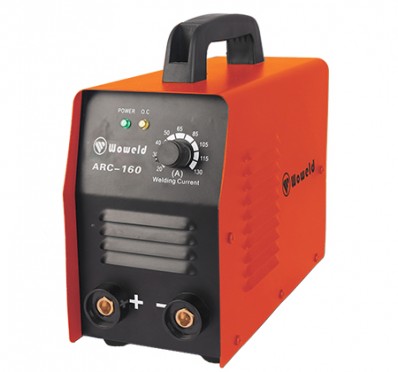

Technical Data | ARC-160 |
Rated Input Voltage | 220~240±15% |
Phase/Frequency | 1Ph/50~60Hz |
Rated Input Power | 6.5KVA |
Rated Duty Cycle | 100% |
Output Amperage Range | 20~160A |
Output Voltage Range | 20.8~26.4V |
Output No-load Voltage | 56V |
Efficiency | 85% |
Power Factor | 0.76 |
Protection Grade | IP 23 |
Insulation Class | F |
Net Weight | 6KG |
Dimensions | 29*12*20CM |
